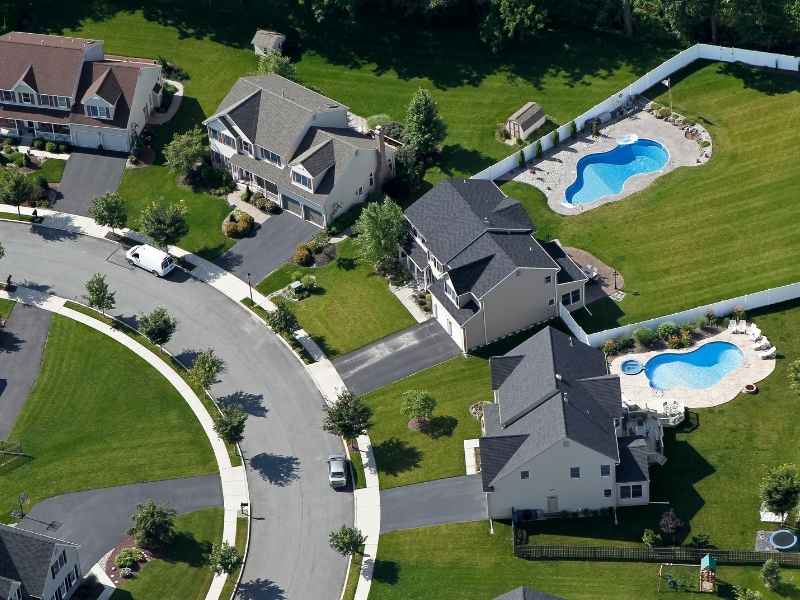

Not every lot is a clean rectangle. Pie-shaped lots, flag lots, curved lots near a cul-de-sac, and lots cut by an old drainage easement are common. These shapes make planning harder than a normal lot. Mistakes get expensive once construction starts.

A plat of survey fixes this problem. It shows the exact boundaries, sizes and features of a property, drawn to scale. For a strange-shaped lot, this document turns a confusing shape into clear numbers you can plan around. This article covers what a plat of survey shows, why odd shapes cause problems, and how to use the survey before you design anything new.

How a Plat of Survey Shows an Irregular Lot

A plat of survey is a scaled drawing. It shows a property’s boundary lines, corners, sizes and main features. For an odd-shaped lot, it captures every angle and curve. It does not assume straight, even sides.

The drawing usually includes:

• Boundary lines with exact directions and distances
• Lot corners marked with found or set markers
• Easements, rights-of-way and utility paths
• Building setback lines required by zoning or deed rules
• Existing buildings, driveways and fences
• A north arrow and scale for accurate reading

On a rectangular lot, a buyer or builder can often guess the size by eye. That does not work on an irregular lot. A curved line along a cul-de-sac, a narrow driveway strip on a flag lot, or a jog in the property line from an old subdivision plat all need exact measurement. A plat of survey gives you that exact measurement instead of a guess.

Many neighborhoods were built in phases over several decades. Older subdivision plats don’t always match what’s really on the ground today. A new plat of survey confirms what’s actually there now.

Why Unusual Lot Geometry Complicates Site Planning

Odd lot shapes make site planning harder. They limit where buildings can go, how utilities connect, and how much of the lot you can actually use. A lot that looks large on paper can leave very little space to build on.

A few common problems show up again and again:

• Narrow points. A pie-shaped lot may be wide in back but pinch to a narrow street front. This limits where a driveway can go.
• Sharp angles. Sharp corners from curved streets or angled lines cut down on usable space near those corners.
• Split easements. A drainage or utility easement crossing an odd lot at an angle can cut off more buildable land than it would on a rectangular lot.
• Flood and drainage patterns. Odd shapes don’t always drain the way a builder expects, especially near bayous or low-lying spots common.

None of these problems show up on a simple property description or an online lot map. They show up once a surveyor plots the real boundary and checks it against setback lines, easements and drainage needs. Catching these issues early saves time and redesign costs later.

How Survey Dimensions Clarify Usable Property Area

Survey dimensions show exactly where setbacks, easements and boundary lines fall. That tells you what part of the lot you can actually build on. Total lot size on a deed or tax record rarely matches the real buildable area on an odd-shaped lot.

A plat of survey lets you figure out:

• The buildable space left after setbacks apply on all sides
• How much space an easement removes from that area
• Where a structure can sit without crossing a side or rear setback
• Whether a new addition, pool or shed will actually fit

On a rectangular lot, this math is simple. On an irregular lot, setbacks measured from angled or curved lines create a buildable area shaped differently than the lot itself. Sometimes it’s much smaller than expected. A surveyor can plot this buildable area right on the plat. That gives you a clear picture instead of a rough guess based on total square footage.

This matters most before a purchase closes or before a design moves past early planning. Confirming usable area early stops a buyer or builder from planning a project that doesn’t actually fit the lot.

What Setbacks Look Like on an Irregular Parcel

Setbacks on an odd-shaped lot don’t run in simple straight lines like they might on a rectangular lot. On a curved or angled boundary, the setback line follows that same curve or angle. That changes how much space is left to build in.

A few things to check on an irregular lot:

• Whether setback rules come from city zoning, a homeowners association, deed rules, or more than one of these at once
• How front setbacks are measured on a curved street
• Whether side setbacks change along an angled property line
• Whether an easement runs inside the setback area, cutting the buildable space down even more

Setback rules can vary by city, by subdivision, and sometimes by lot type within the same subdivision. A mix of city lots, county lots and deed-restricted subdivisions. Setback and building line rules are not the same across all of them. Confirm the exact rules for your property with the local authority or your surveyor. Don’t assume your lot matches the one next door.

Using the Survey Before Designing New Improvements

A plat of survey should come before design work starts, not after. Architects, builders and homeowners all do better work when they start with accurate boundary and setback data. That beats fixing a finished design after a survey turns up a problem.

Before you finalize plans for a new home, addition, pool, fence or shed on an odd lot, use the survey to:

• Confirm the buildable space after setbacks and easements
• Check for any encroachments from existing buildings or neighboring structures
• Confirm utility locations before planning foundation or digging work
• Check how water drains across the lot, especially on lots with unusual grading

This is one of the top reasons a project stalls partway through permitting or construction. A design that looks fine on a flat site plan can run into a setback problem, an easement conflict or an access issue once a surveyor plots the real shape. Confirm survey needs early, especially when a project is on a tight timeline for permits or closing. That keeps the project moving instead of stuck in redesign.
