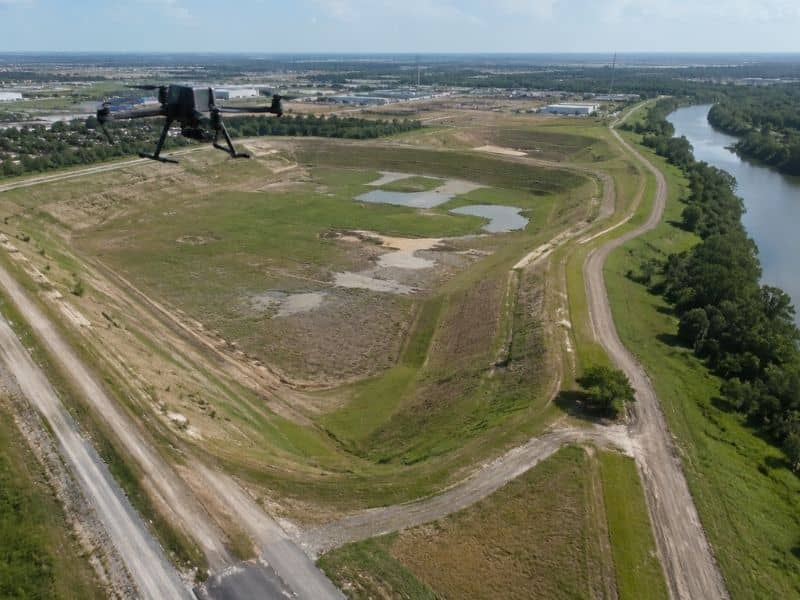

Drone LiDAR mapping fits detention basins better than most alternatives because these sites are large, wet and awkward to walk. A basin sitting beside an active channel covers many acres of side slopes, berms and irregular bottom. Parts of it stay soft year round. Vegetation grows thick along the banks. A ground crew can spend a week collecting points and still miss the shape of the bowl. A flight captures the whole basin and the channel beside it in a day, with enough detail to compute what the expansion actually requires.

Capturing the Existing Basin and Bayou Surface

The flight covers the basin and a generous margin around it. That margin matters, since the ground beyond the berm affects how water reaches the basin and where it goes when the basin fills. Crews plan coverage that includes the adjacent channel banks, the access roads and any nearby properties that the expansion could affect.

The sensor records the shape in detail. Side slopes, benches, the bottom contour, berm crests and the top of the bank all come through with enough points to build a reliable surface. Features that ground crews often smooth over, like a slight ridge across the bottom or a low spot near an inlet, show up clearly.

Ground control anchors everything. Crews place targets on stable ground around the site and survey them conventionally. Without that step, the model may look correct while sitting a foot off vertically, which would ruin every volume calculation built on it.

Locating Outfalls, Berms, and Hydraulic Connections

The structures controlling flow deserve careful attention. Aerial data locates inlet and outlet headwalls, weirs, spillways, berm crests and access ramps. Crews record berm crest elevations along their length, since a low spot in a berm sets where water spills first.

Some elements need ground measurement. Pipe inverts inside a structure, gate positions and anything below water can’t be measured from the air. A field crew visits those locations and records them conventionally, then the data gets merged into the same base map.

Connections to the channel matter most. Where the basin discharges into the bayou, the outfall elevation relative to the channel bed determines whether the basin drains freely or backs up during high water. That relationship gets measured directly and shown on the drawing rather than assumed from the design plans.

Calculating Storage and Excavation Volumes

Volume calculations are the reason most of this work happens. Once the surface model exists, software computes how much water the basin holds between any two elevations. That gives the engineer the existing storage, which is the baseline the expansion has to improve on.

Excavation quantities come from the same comparison. Overlay the proposed design surface on the existing one and the difference is the material that has to move. That number drives the bid, the haul plan and the schedule, so accuracy in the base surface pays for itself.

Water complicates the math and deserves a plain note. LiDAR measures the water surface, not the bottom beneath it. Where a basin holds a permanent pool, the model needs soundings or a survey taken during dry conditions to describe the submerged portion. Reporting a volume without that correction overstates the storage.

Mapping Areas That Are Difficult to Reach on Foot

Access is a real limit on these sites. Basin bottoms hold soft mud long after rain. Side slopes get steep enough that walking them with a rod is slow and unsafe. Vegetation along a channel can be dense enough that a crew loses hours cutting a path.

Aerial collection removes most of those problems. The sensor measures the surface without anyone stepping on it, and it covers steep slopes as easily as flat ground. Crews still walk what they need to, just far less of it.

Vegetation gets handled by classification. Multiple returns per pulse let technicians separate ground points from brush and grass, which produces a bare-earth surface under moderate cover. Very thick vegetation reduces the ground points available, and the crew notes those areas rather than presenting a model built on thin data.

Verifying the Basin Shape After Expansion

The work gets checked the same way it was designed. A second flight after excavation captures the finished basin, and the resulting surface gets compared against the design. That comparison shows whether the contractor reached the required depth across the whole bottom or left high spots in the corners.

Berm elevations get verified along their length. A berm built slightly low in one section changes where water overtops, which affects everything the design was meant to control. Continuous coverage catches that in a way spot checks can’t.

Final storage volume comes out of the same model. The owner ends up with a measured number for what the expanded basin actually holds, along with a record of the built geometry. That documentation supports acceptance of the work and gives whoever maintains the basin a starting point for future comparison.
