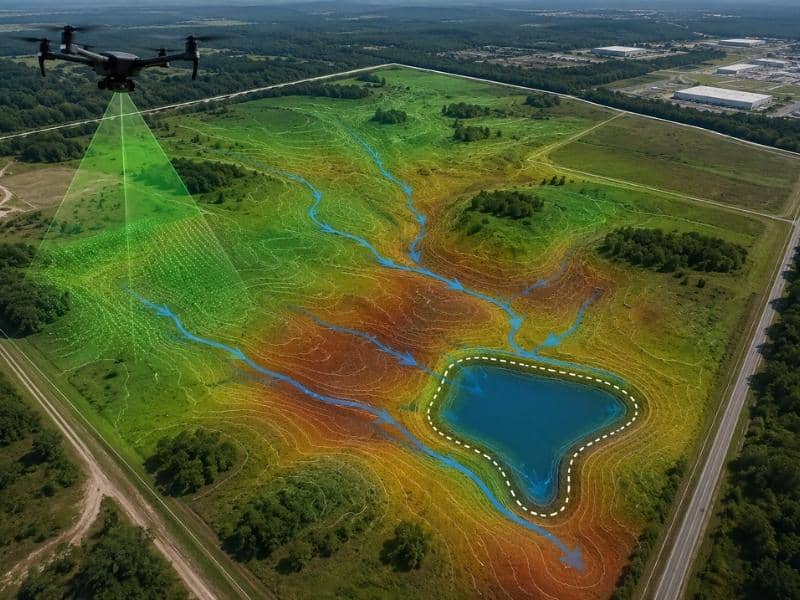

Drainage planning for a large development does not stop at the edge of the building pads. Water moves across an entire property, often in ways that only become clear once the full site has been measured. Drone LiDAR mapping makes that kind of full coverage far more practical than it used to be, giving engineers a detailed terrain picture across acres of land in a fraction of the time a ground crew would need.

This wider view matters most during the earliest stages of planning, before grading has changed anything and while the original shape of the land can still be studied closely.

Collecting Elevation Data Beyond the Immediate Building Pads

Drainage does not respect the boundaries of a proposed building pad, so limiting a survey to just those areas leaves out important information. Water arriving from elsewhere on the property, or leaving the site in an unexpected direction, can only be understood by looking at the land as a whole.

Aerial mapping makes this broader coverage realistic on a large tract, collecting elevation data across open fields, wooded edges, and undeveloped corners that a ground crew might otherwise skip during an early planning phase. That fuller picture becomes the foundation for a drainage plan that actually works once the site is built out.

Detecting Shallow Depressions Within Flat Landscapes

Large sites often include stretches of land that look almost perfectly flat to the eye, yet still contain small depressions capable of holding water after a storm. Dense LiDAR data can catch these subtle low spots far more reliably than a visual inspection ever could.

A shallow depression easy to miss on a walkthrough can matter a great deal once grading begins, since it may need to be filled, drained, or intentionally preserved as part of the stormwater plan. Catching these features early gives engineers more options for how to handle them.

Modeling Existing Flow Before Grading Alters the Site

Once construction begins, the original shape of the land starts to disappear under new grading, so capturing an accurate baseline model before that work starts is essential. This existing surface becomes the reference point for understanding how water moved across the site before any changes were made.

Without this baseline, it becomes difficult to evaluate how much a proposed grading plan will actually change drainage patterns. Preserving an accurate record of the original terrain gives the design team something solid to compare against throughout the rest of the project.

Comparing Conceptual Detention Areas With Natural Low Points

Detention areas work best when they take advantage of land that already wants to collect water, rather than fighting against the natural terrain. Comparing proposed detention locations against the mapped low points on a property helps engineers identify spots where a pond or basin will function efficiently.

This comparison can also reveal when a proposed location works against the natural flow of the site, requiring more grading and higher cost than a nearby alternative might need. Evaluating several options against the same terrain data supports a more efficient overall design.

Integrating Aerial Results With Survey Control and Field Checks

Aerial data becomes far more useful once it is tied into reliable ground control, connecting the LiDAR results to the same coordinate system used throughout the rest of the project. This step turns a general terrain model into something that can be trusted for detailed engineering work.

Field checks in key areas confirm that the aerial data lines up with reality, catching any spots where the model may need correction. Combining aerial coverage with this kind of ground verification produces a dataset that is both broad and dependable.

Frequently Asked Questions

Can Drone LiDAR map a site containing standing water?

It can capture the surrounding terrain, but standard topographic LiDAR generally does not measure underwater ground with reliable accuracy.

Will the data replace drainage engineering?

No. It provides terrain information that qualified engineers use to design the actual drainage system for the site.

Can repeated flights track grading progress?

Yes, when the datasets are collected and controlled consistently, allowing terrain changes to be compared over time.
